Description

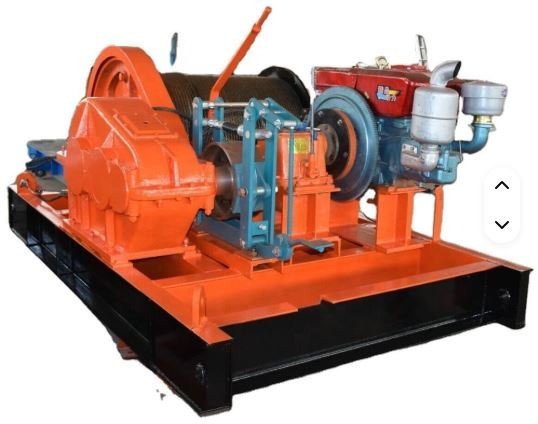

Elite Machine Tools (EMT) offers high-performance Portable Winch Machines designed for lifting, pulling, dragging, and material handling applications across construction sites, warehouses, workshops, farms, and industrial facilities. Compact yet powerful, these winches provide reliable performance for moving heavy loads with ease and efficiency.
Manufactured using premium-quality materials and equipped with a robust motor and durable wire rope system, the Portable Winch Machine ensures smooth operation, high pulling capacity, and enhanced safety. Its lightweight and portable design allows easy transportation and quick installation at different work locations.
Built for continuous industrial and commercial use, the machine delivers dependable performance, low maintenance, and long service life.

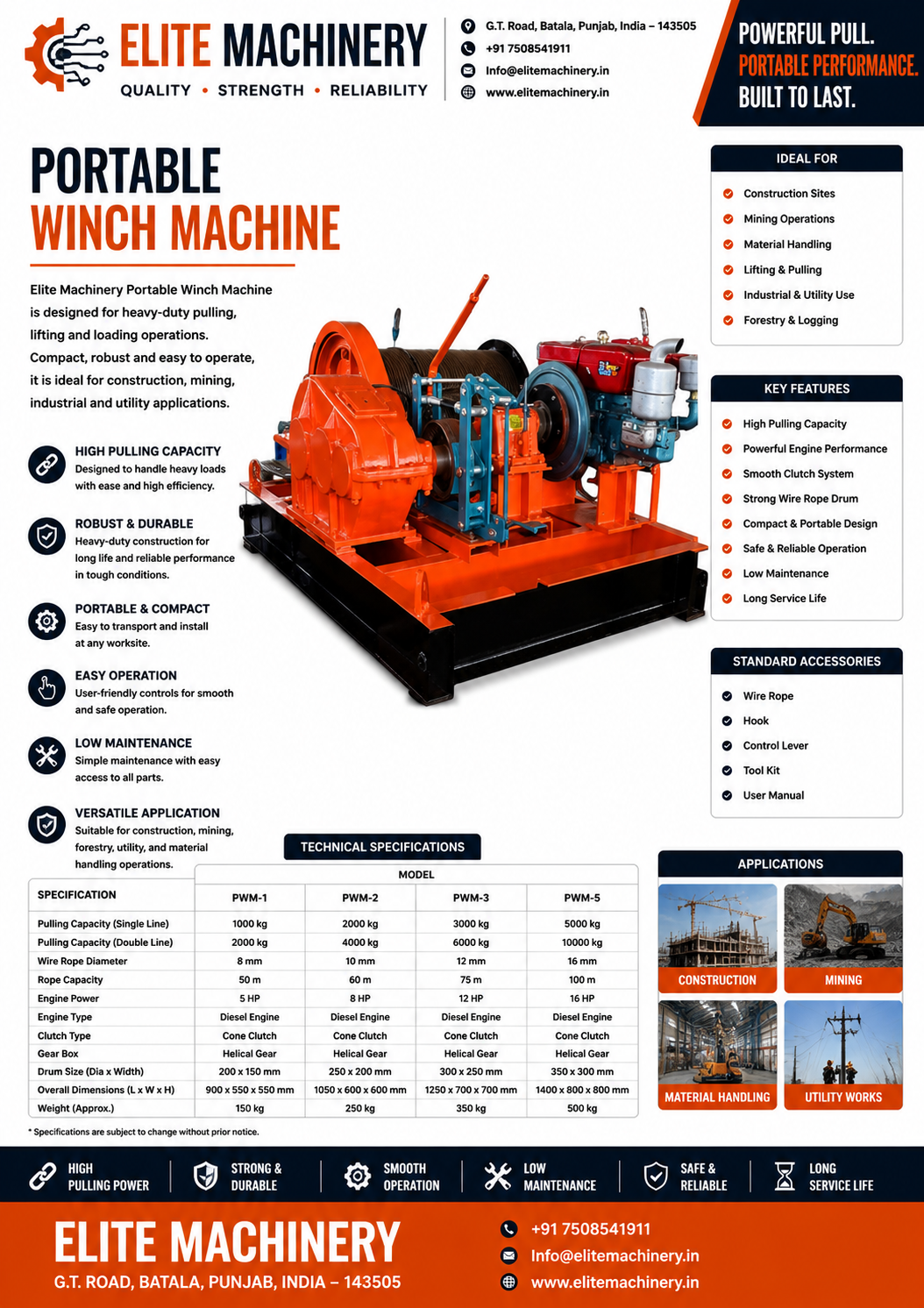

Technical Specifications
| Parameter | Details |
|---|---|
| Machine Type | Portable Winch Machine |
| Capacity | 300 kg – 5000 kg |
| Lifting Height | Up to 100 Meters |
| Wire Rope Diameter | 6 mm – 16 mm |
| Wire Rope Length | As Per Requirement |
| Lifting Speed | 8 – 25 m/min |
| Motor Power | 1 HP – 10 HP |
| Operation Type | Electric |
| Control System | Pendant / Remote Control |
| Machine Structure | Heavy Duty Steel Construction |
| Voltage | 220V / 240V / 415V |
| Safety Features | Overload Protection & Emergency Stop |
| Condition | New |
Key Features
✔ Compact and portable design
✔ High lifting and pulling capacity
✔ Heavy-duty motor and gearbox system
✔ Easy installation and transportation
✔ Smooth and reliable operation
✔ Strong steel wire rope construction
✔ Low maintenance requirements
✔ Enhanced safety features
✔ Long service life and durable performance
Applications
- Construction Sites
- Material Handling Operations
- Warehouse Loading & Unloading
- Industrial Maintenance Work
- Agricultural Applications
- Infrastructure Projects
- Equipment Installation
- General Lifting Operations
Available Models
- 300 kg Portable Winch Machine
- 500 kg Portable Winch Machine
- 1 Ton Portable Winch Machine
- 2 Ton Portable Winch Machine
- 5 Ton Heavy Duty Winch Machine
Brand
Elite Machine Tools (EMT)
Origin
Made in India
Customization
Available as per customer specifications, lifting capacity, wire rope length, and operational requirements.
