Description

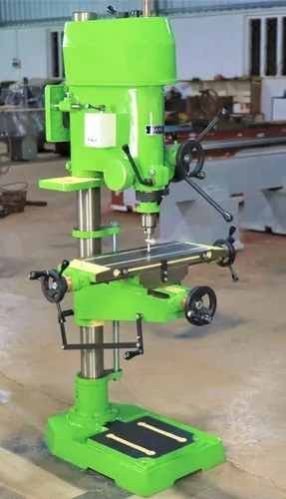

Elite Machine Tools (EMT) offers high-performance Drilling Cum Milling Machines designed for precision drilling, milling, boring, reaming, tapping, and slotting operations. Combining drilling and milling functions in a single machine, it provides versatility, accuracy, and efficiency for a wide range of machining applications.
Manufactured with a rigid cast iron structure and precision-engineered components, the machine ensures excellent stability, smooth operation, and superior machining accuracy. Its compact design and multi-functional capability make it ideal for tool rooms, engineering workshops, maintenance departments, educational institutes, and industrial production units.
The Drilling Cum Milling Machine is a cost-effective solution for industries requiring both drilling and milling operations on a single platform.
Technical Specifications
| Parameter | Details |
|---|---|
| Machine Type | Drilling Cum Milling Machine |
| Drilling Capacity | 20 mm – 50 mm |
| End Milling Capacity | 16 mm – 32 mm |
| Face Milling Capacity | 50 mm – 100 mm |
| Spindle Taper | MT-3 / MT-4 / R8 |
| Spindle Travel | 100 mm – 150 mm |
| Spindle Speeds | Variable / Geared Speeds |
| Table Size | 500 mm × 180 mm to 1000 mm × 240 mm |
| Table Travel (X/Y) | As Per Model |
| Motor Power | 1 HP – 5 HP |
| Feed System | Manual / Automatic |
| Machine Structure | Heavy Duty Cast Iron |
| Operation | Electric |
| Condition | New |
Key Features
✔ Combined drilling and milling functionality
✔ High precision machining performance
✔ Heavy-duty cast iron construction
✔ Smooth and vibration-free operation
✔ Multiple spindle speed options
✔ Compact and space-saving design
✔ Easy operation and maintenance
✔ Suitable for workshop and industrial applications
✔ Long service life and reliable performance
Applications
- Engineering Workshops
- Tool Rooms
- Machine Shops
- Maintenance Departments
- Educational & Technical Institutes
- Fabrication Industries
- Small & Medium Manufacturing Units
- Precision Component Production
Available Models
- Bench Type Drilling Cum Milling Machine
- Geared Drilling Cum Milling Machine
- Heavy Duty Drilling Cum Milling Machine
- Industrial Drilling Cum Milling Machine
Brand
Elite Machine Tools (EMT)
Origin
Made in India
