Description

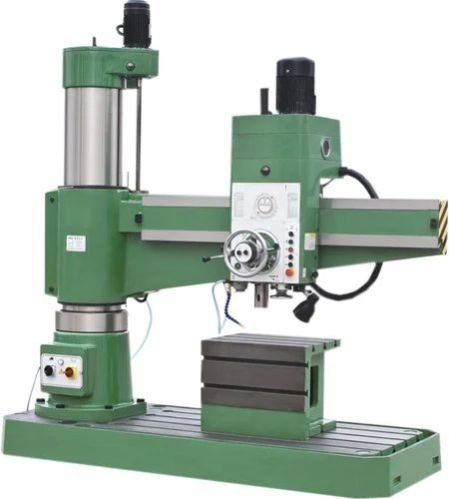

Elite Machine Tools (EMT) offers premium-quality All Geared Radial Drill Machines designed for heavy-duty drilling, tapping, reaming, boring, and countersinking operations. Equipped with a fully geared transmission system, these machines provide high torque, smooth power transfer, and reliable performance for demanding industrial applications.
Manufactured with a robust cast iron structure and precision-engineered components, the All Geared Radial Drill Machine ensures excellent stability, accuracy, and durability. The radial arm design allows easy positioning of the spindle over large workpieces, making it ideal for heavy fabrication, engineering workshops, steel plants, and manufacturing industries.
The machine is specifically built for continuous industrial use and offers high productivity with minimal maintenance requirements.
Technical Specifications
| Parameter | Details |
|---|---|
| Machine Type | All Geared Radial Drill Machine |
| Drilling Capacity | 40 mm – 100 mm |
| Arm Length | 1000 mm – 2500 mm |
| Column Diameter | 250 mm – 500 mm |
| Spindle Travel | 250 mm – 500 mm |
| Spindle Taper | MT-4 / MT-5 / MT-6 |
| Number of Spindle Speeds | 8 – 16 Speeds |
| Feed Rates | Multiple Automatic Feeds |
| Main Motor Power | 3 HP – 10 HP |
| Arm Vertical Movement | Motorized |
| Head Movement | Manual / Motorized |
| Machine Structure | Heavy Duty Cast Iron |
| Operation | Electric |
| Condition | New |
Key Features
✔ Fully geared transmission system
✔ High torque and smooth power transmission
✔ Heavy-duty cast iron construction
✔ Motorized arm lifting mechanism
✔ Multiple spindle speeds and feed options
✔ Suitable for large and heavy workpieces
✔ High drilling accuracy and productivity
✔ Low maintenance and long service life
✔ Ideal for continuous industrial operation
Applications
- Heavy Engineering Industries
- Fabrication Workshops
- Steel Plants
- Power Plant Equipment Manufacturing
- Shipbuilding Industries
- Machine Building Industries
- Maintenance Workshops
- Industrial Production Units
Available Models
- 40mm All Geared Radial Drill Machine
- 50mm All Geared Radial Drill Machine
- 65mm All Geared Radial Drill Machine
- 75mm All Geared Radial Drill Machine
- 100mm All Geared Radial Drill Machine
Brand
Elite Machine Tools (EMT)
Origin
Made in India
